Vacuum Pump Delete for 1.6L Ecoboost

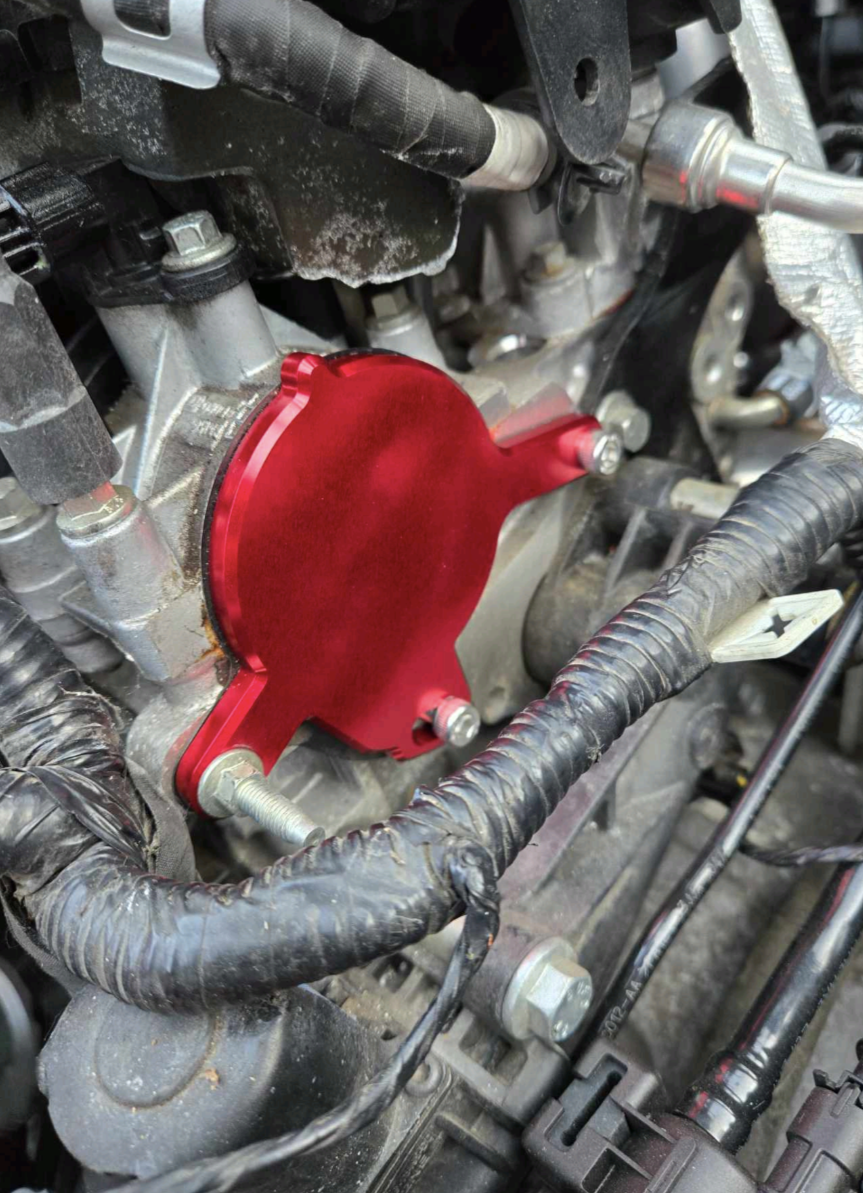

Our billet aluminum vacuum pump delete gets rid of the leak-prone factory vacuum pump and makes your engine bay look better in the process! The 1.6L ecoboost pull 20-21 in hg vacuum, allowing the brake booster to be ran off engine vacuum alone.

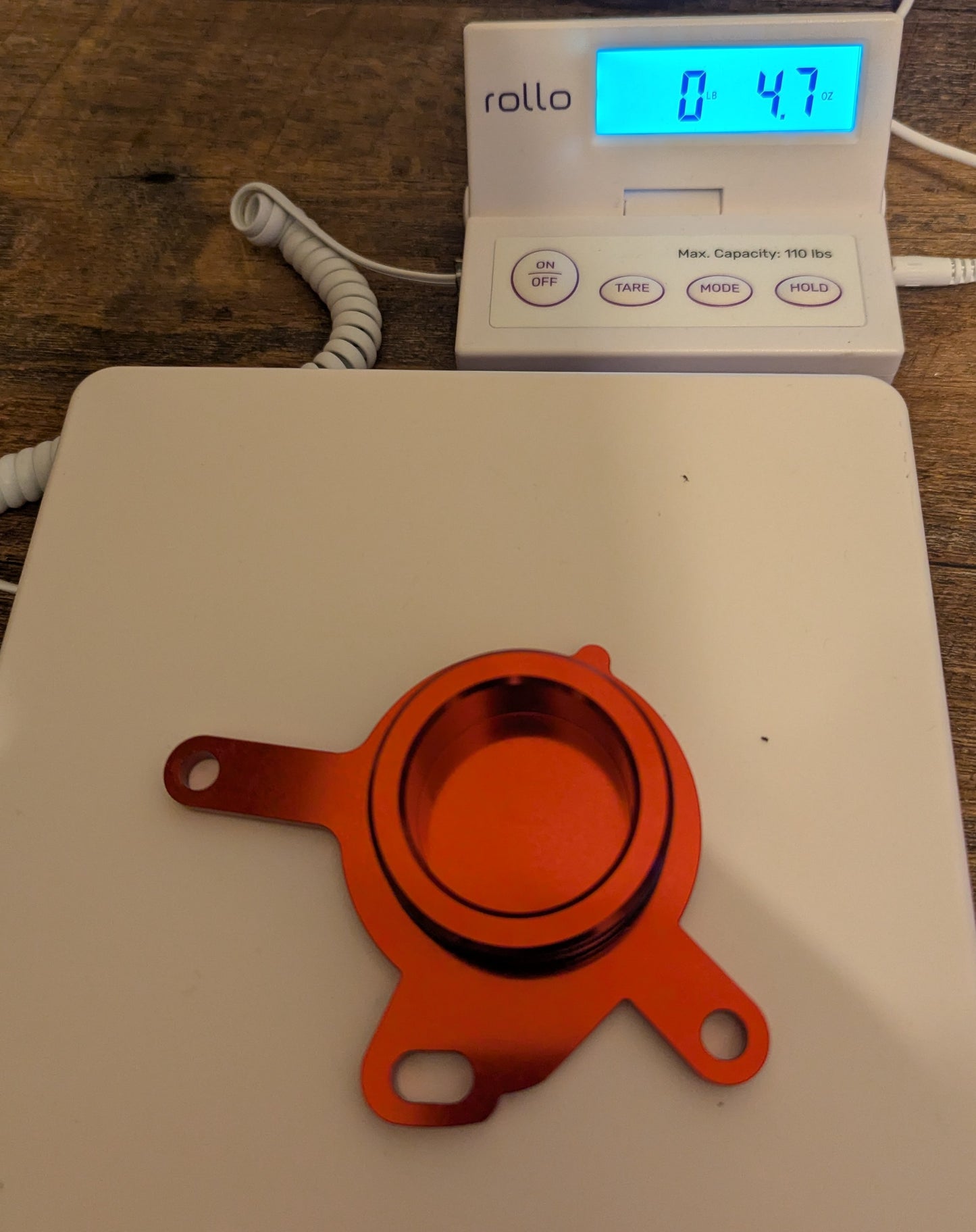

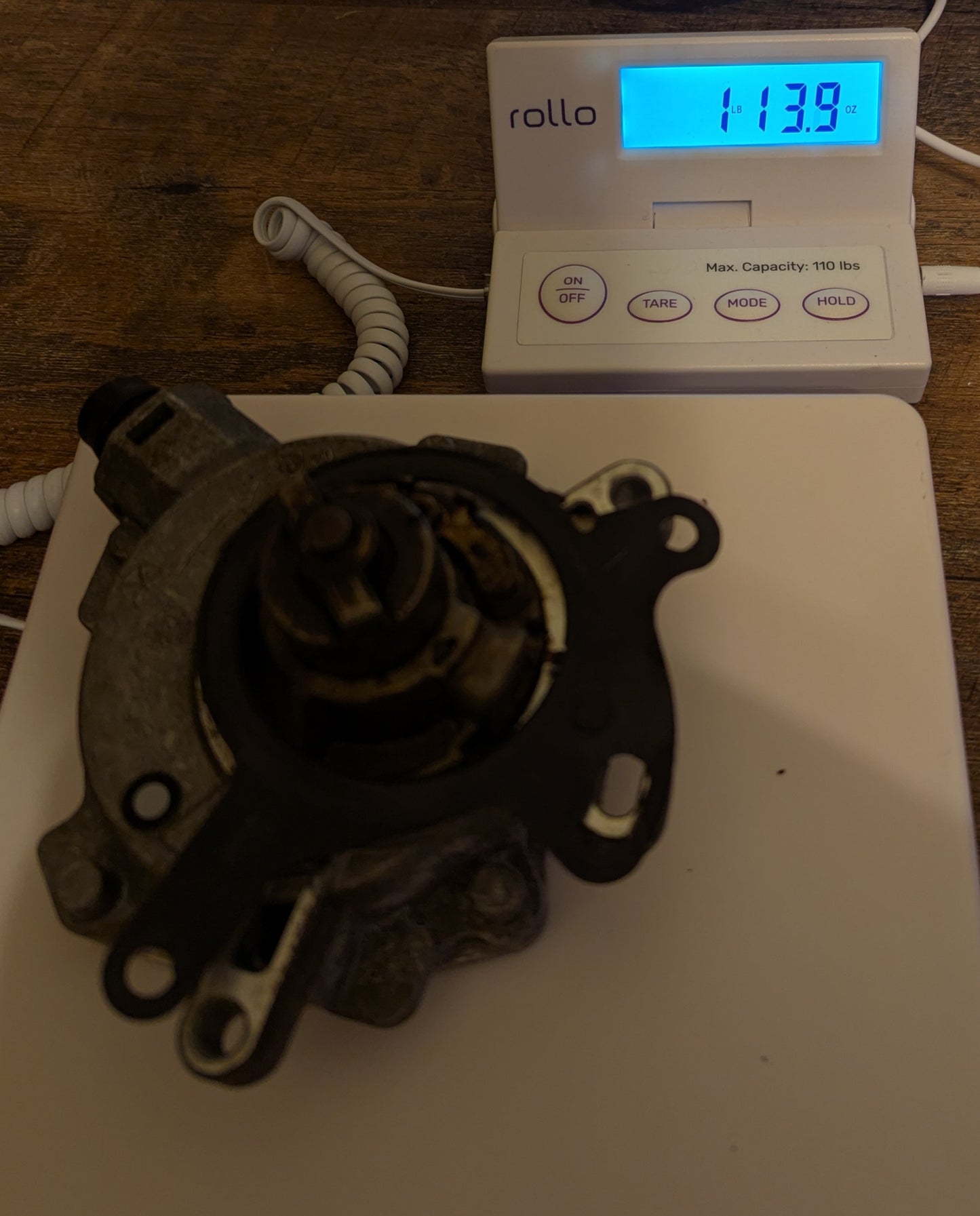

 1.5 lbs of weight savings over stock

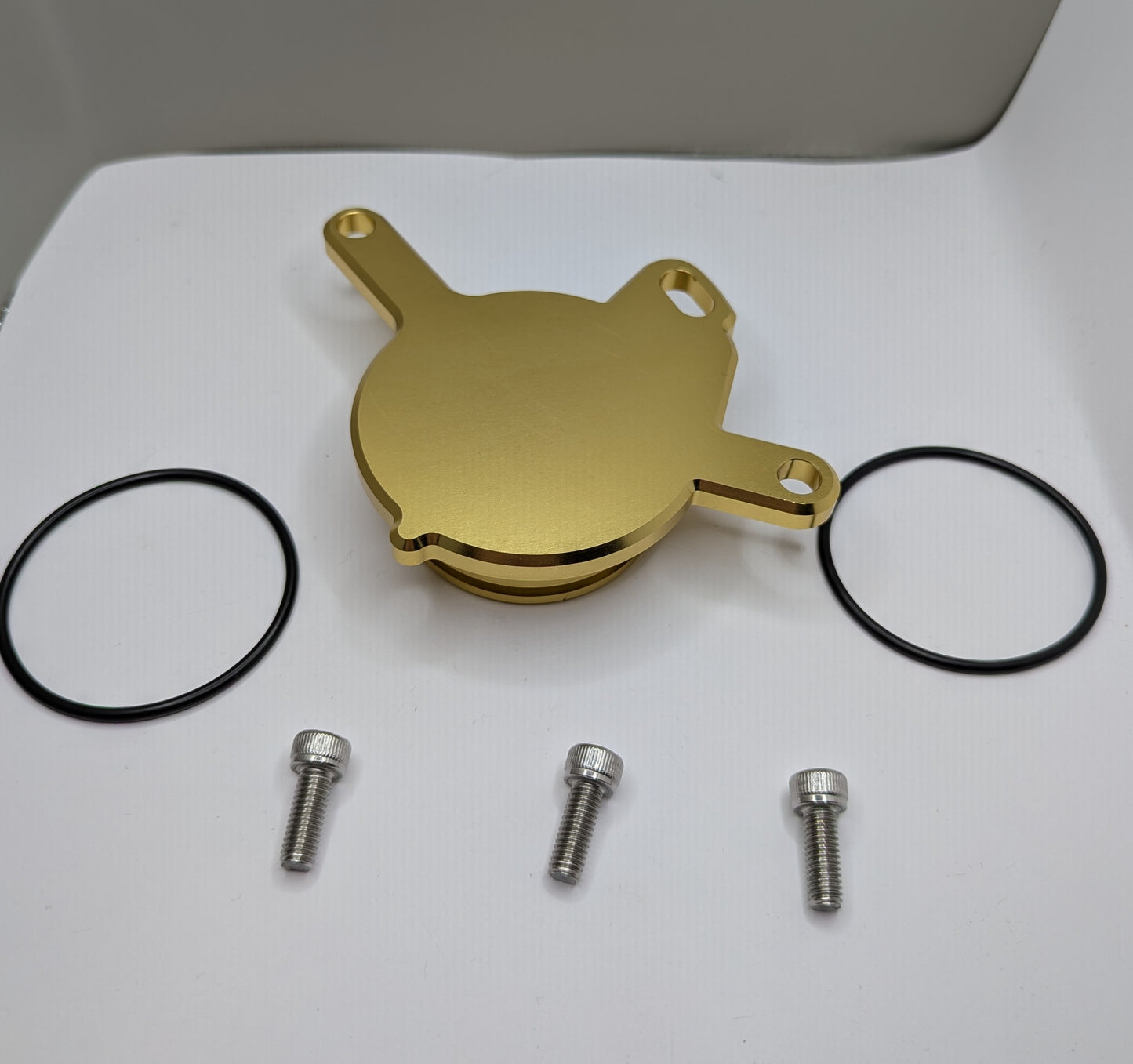

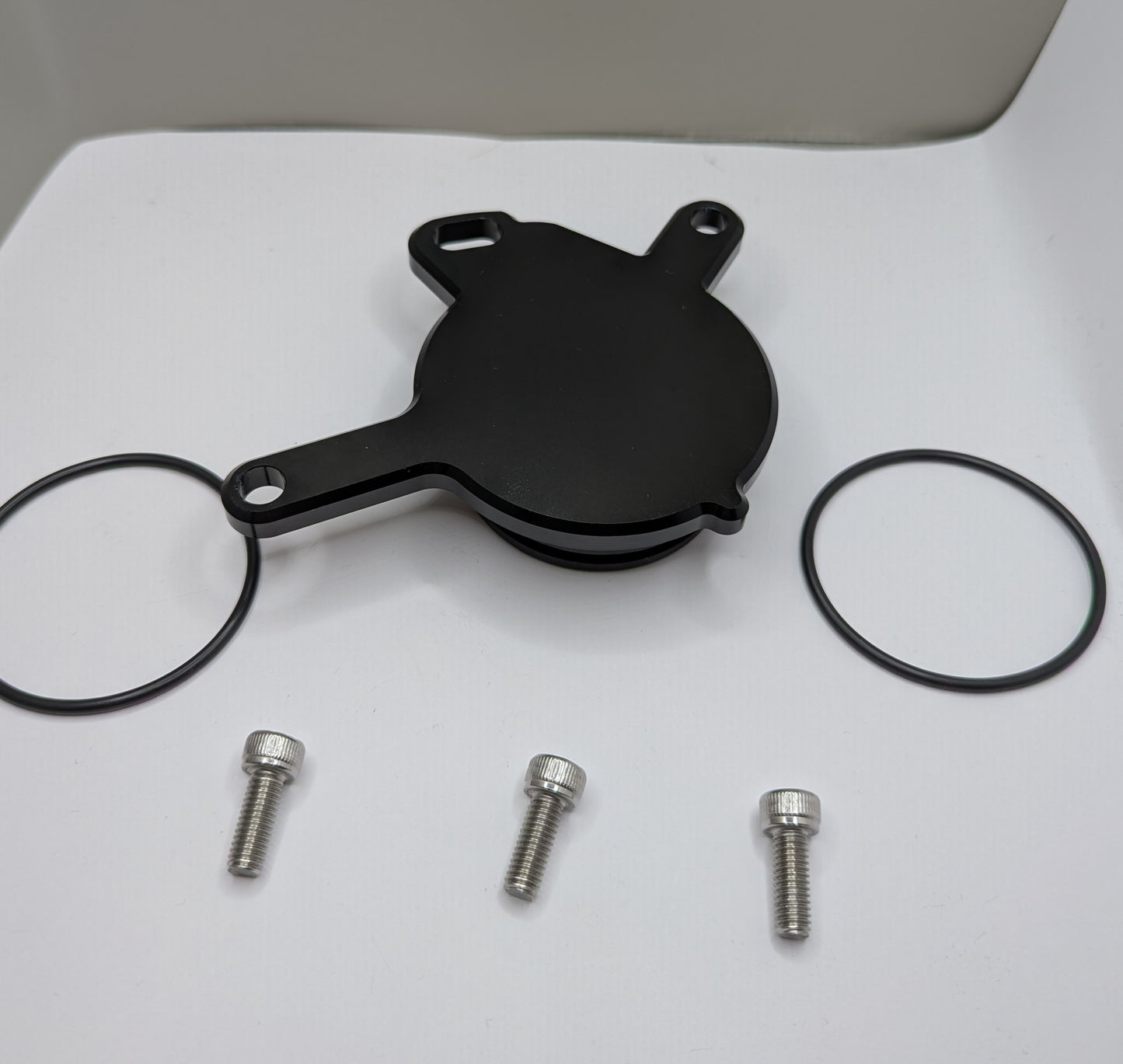

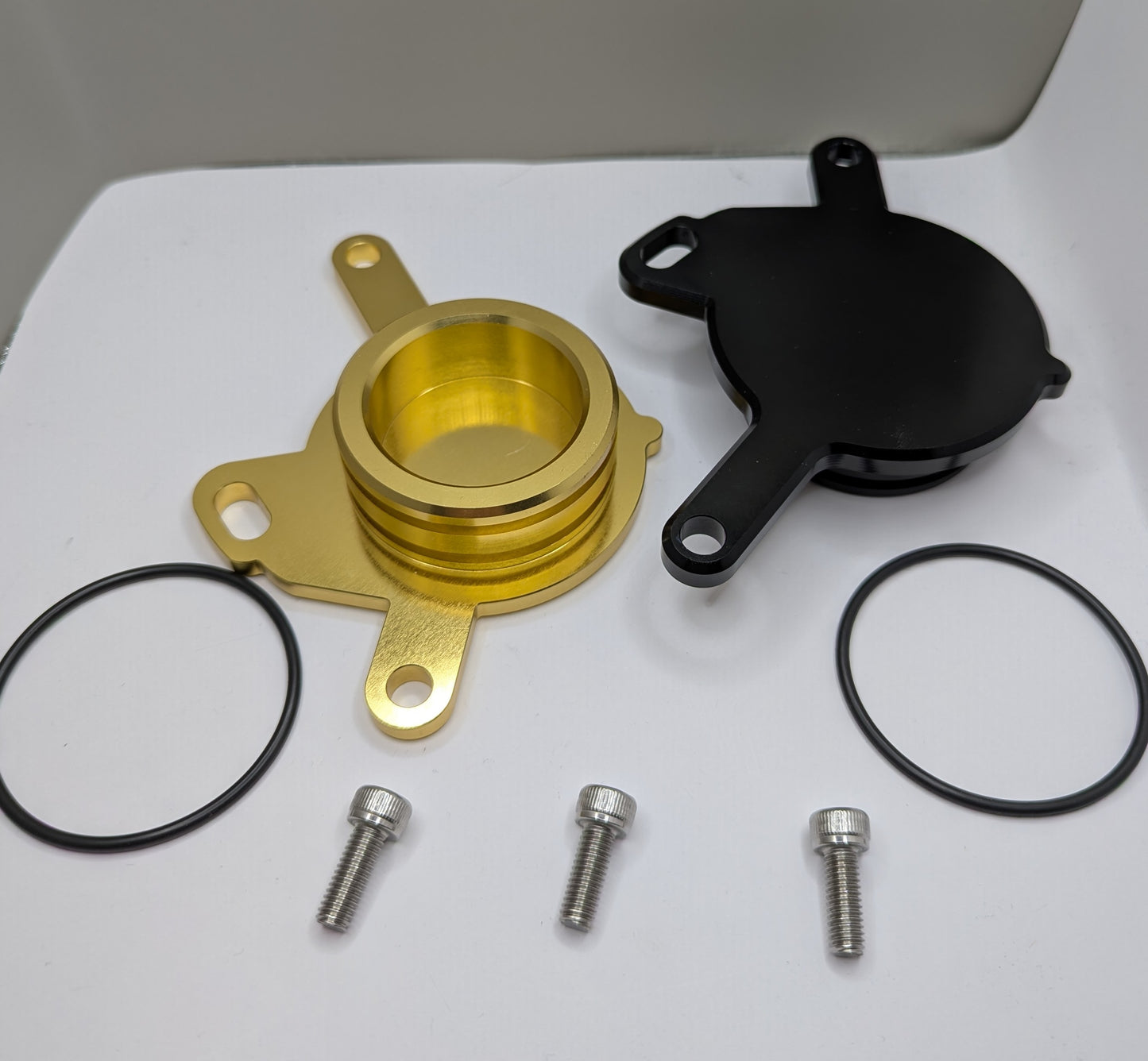

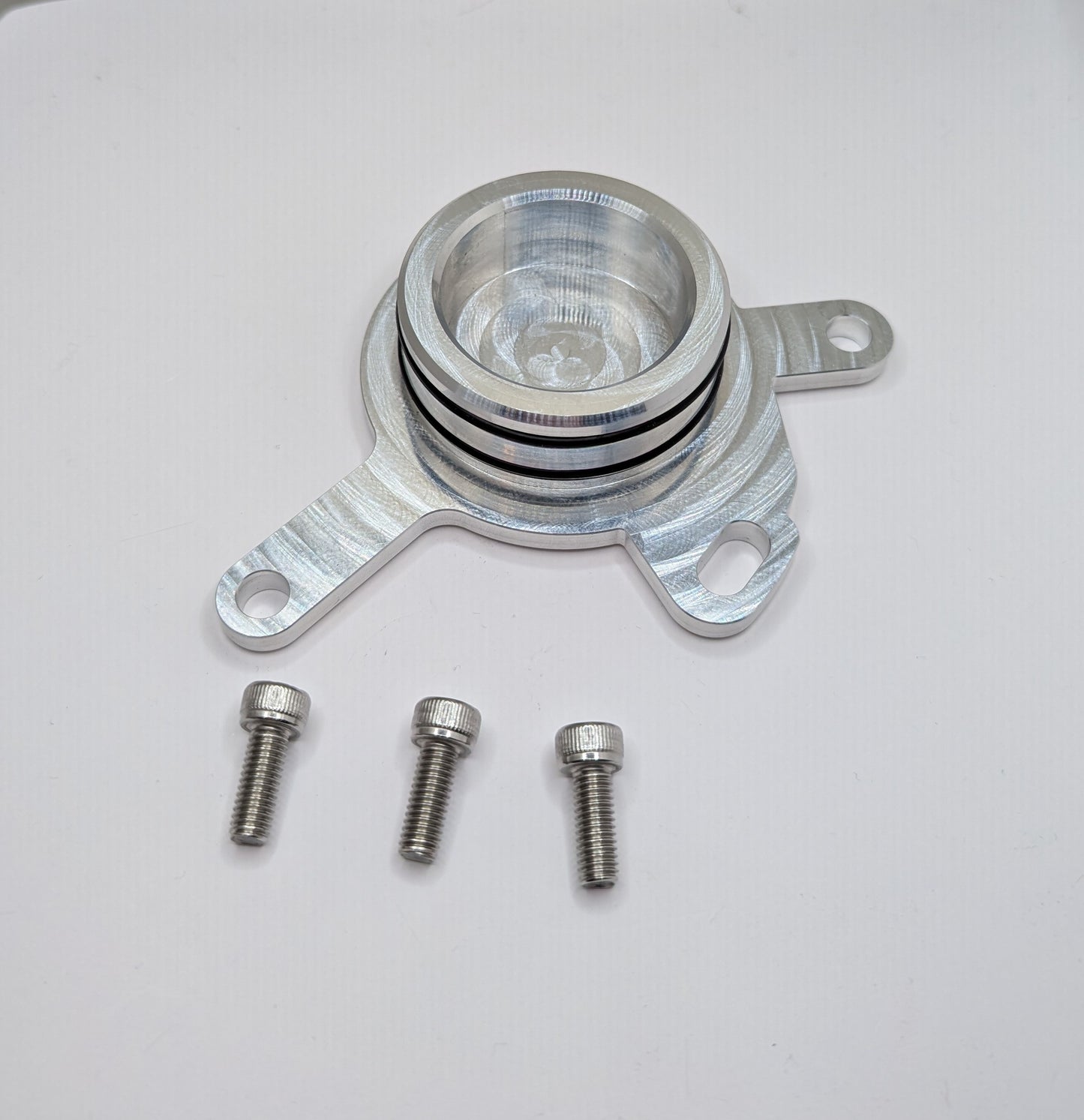

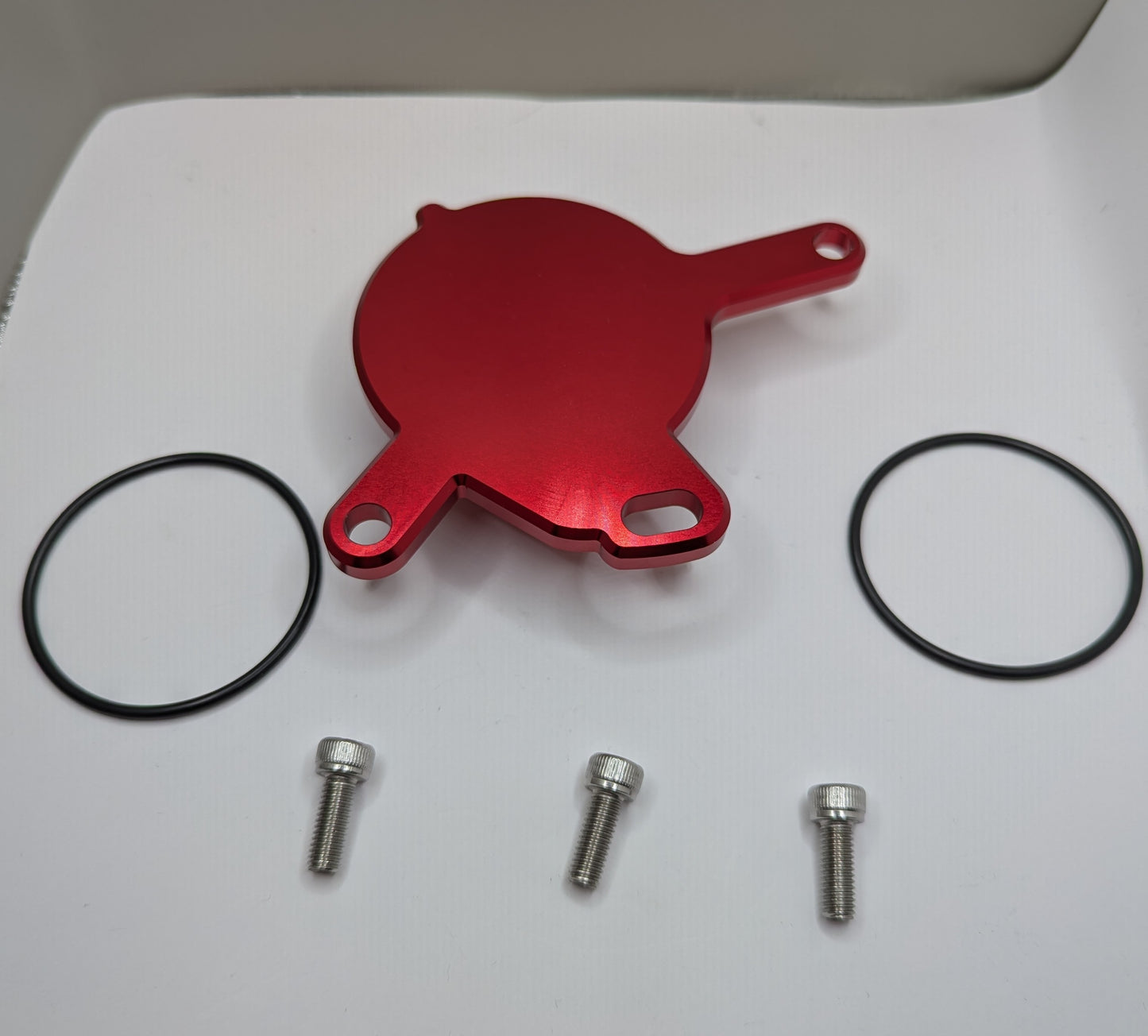

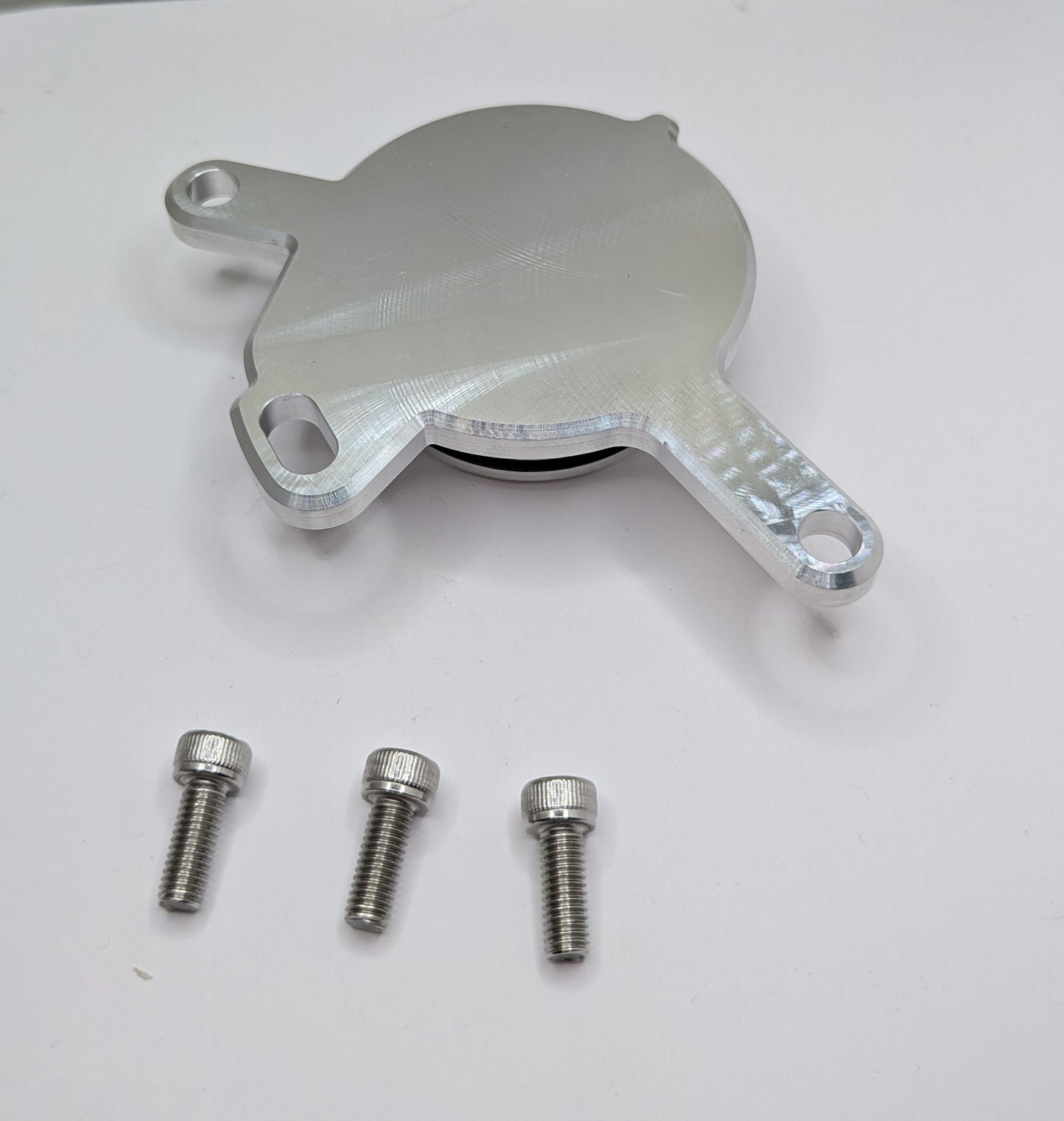

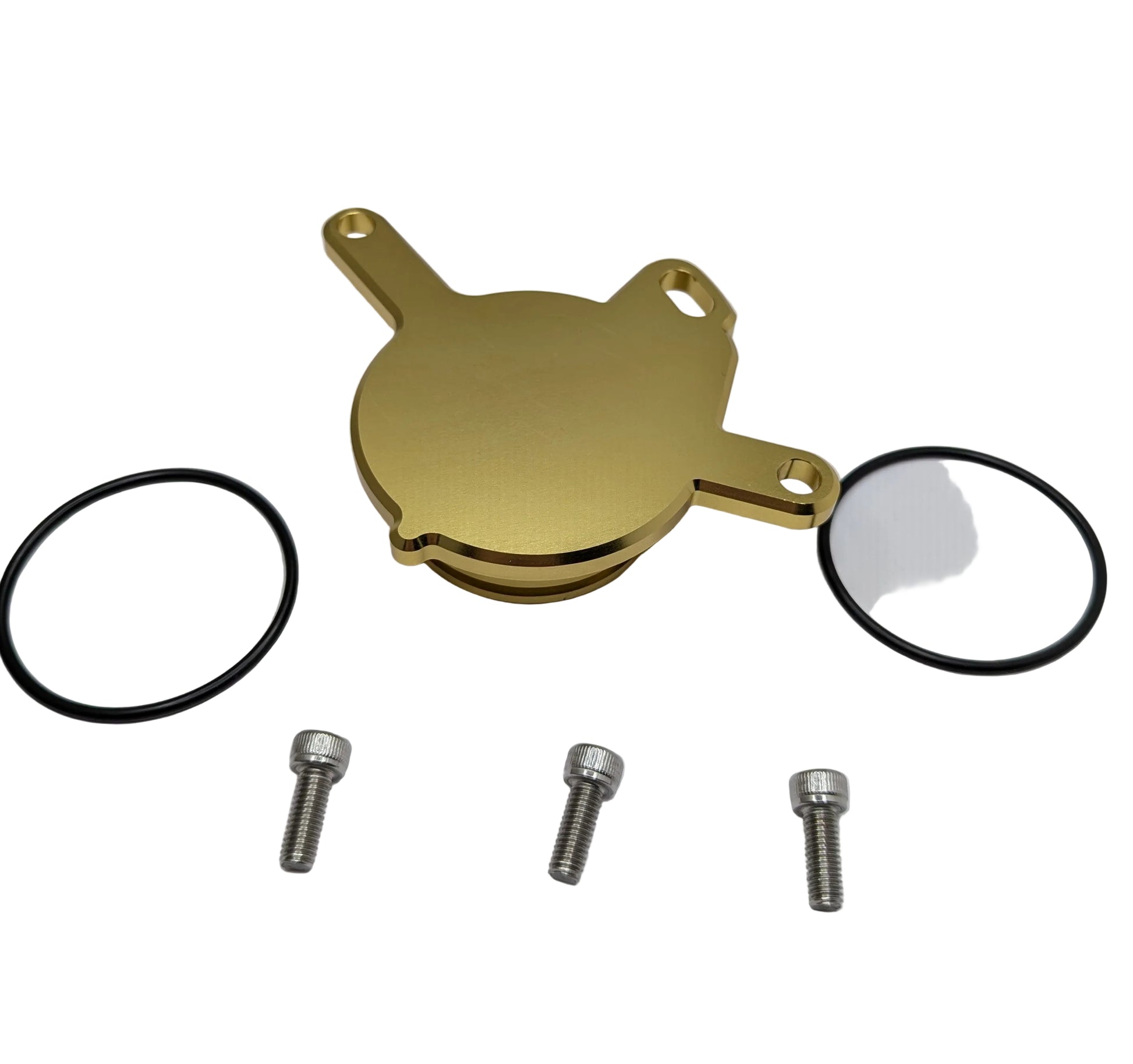

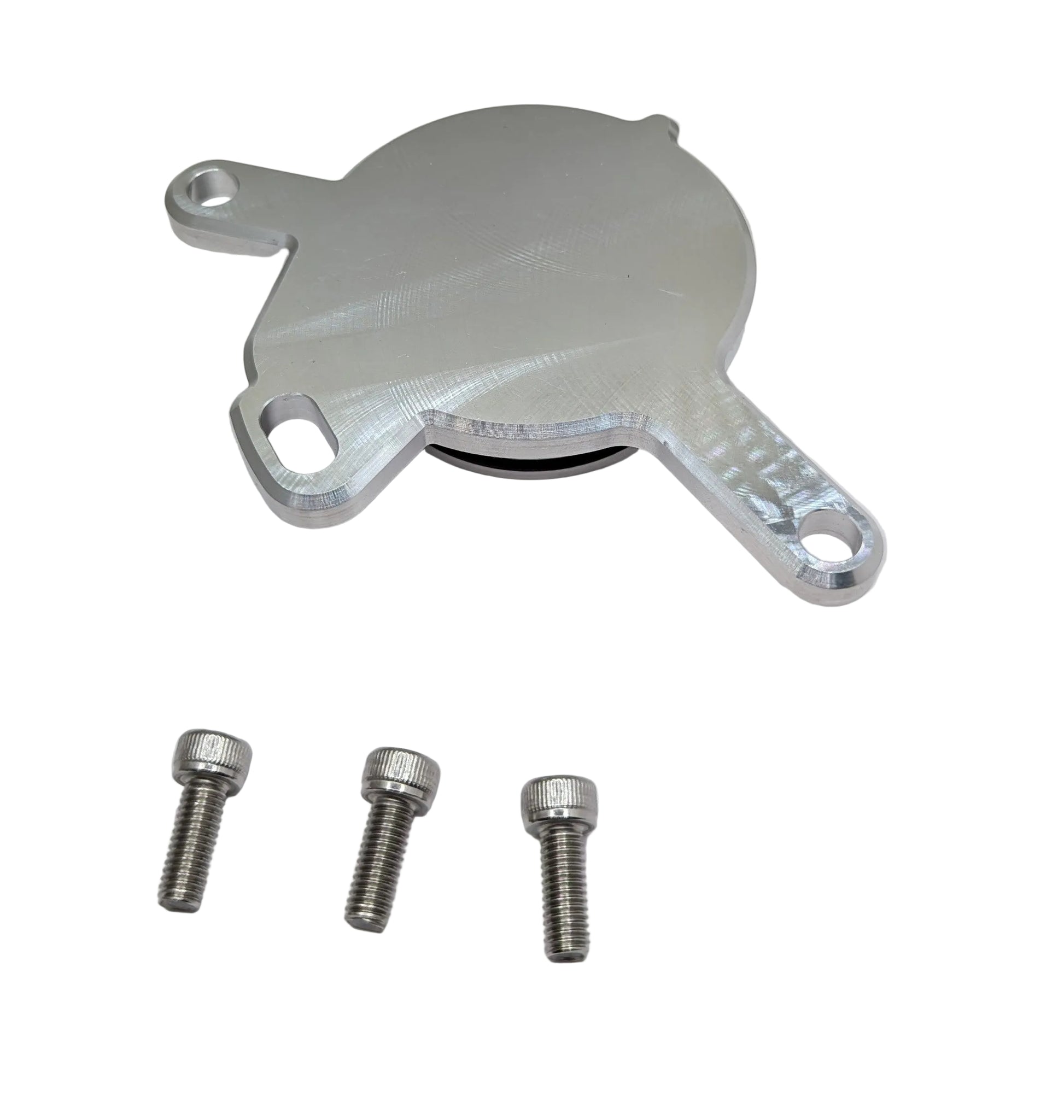

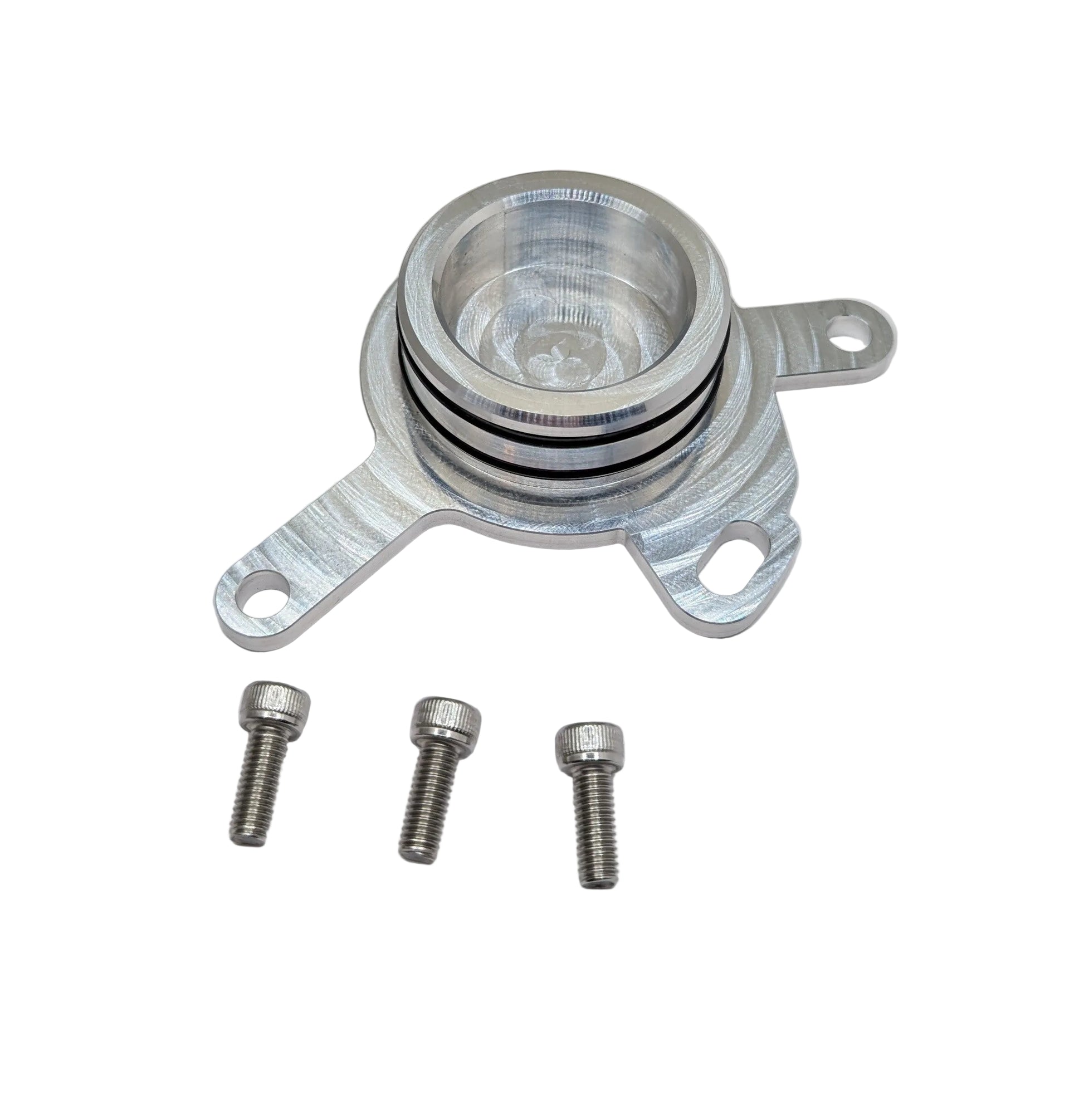

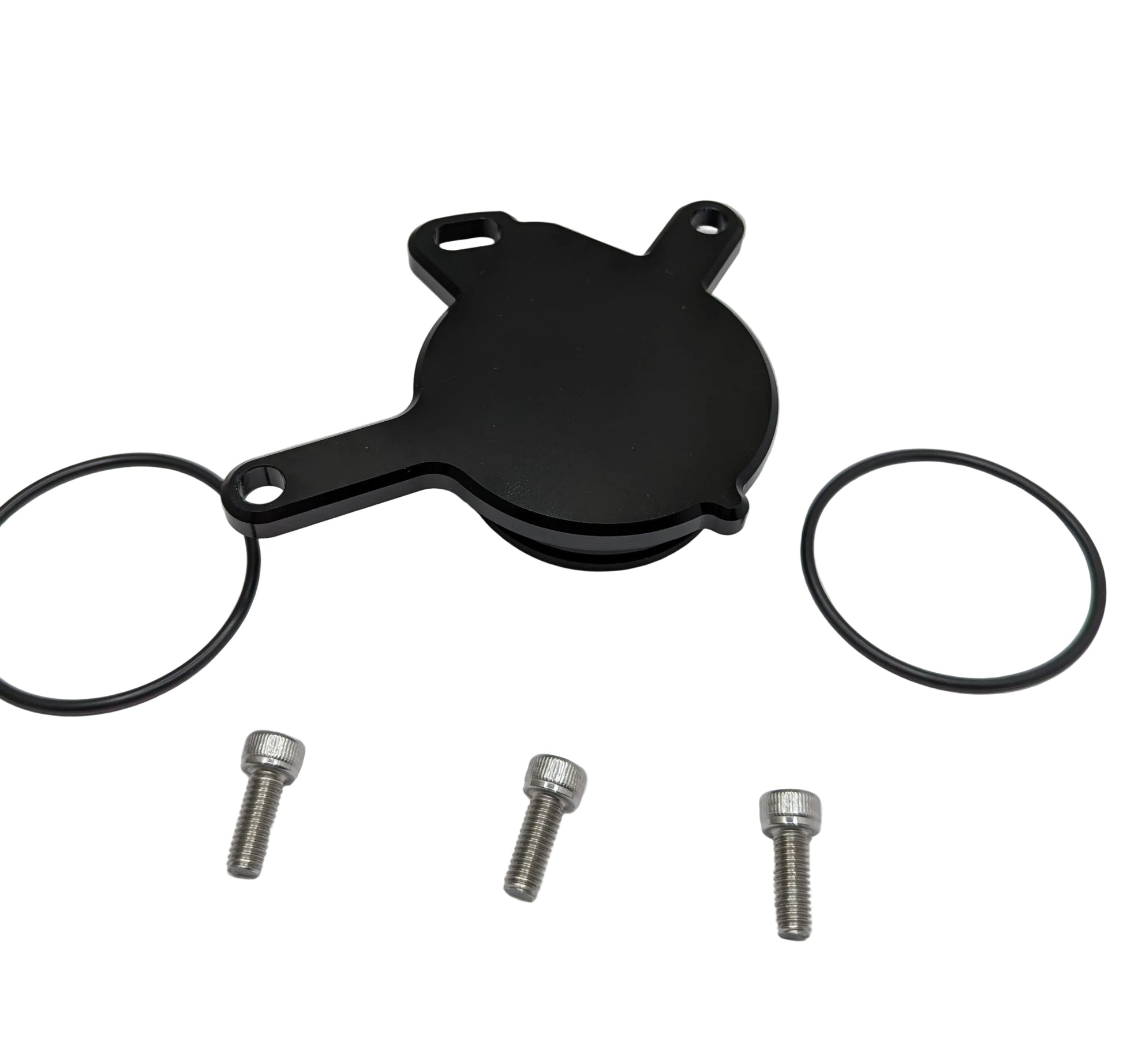

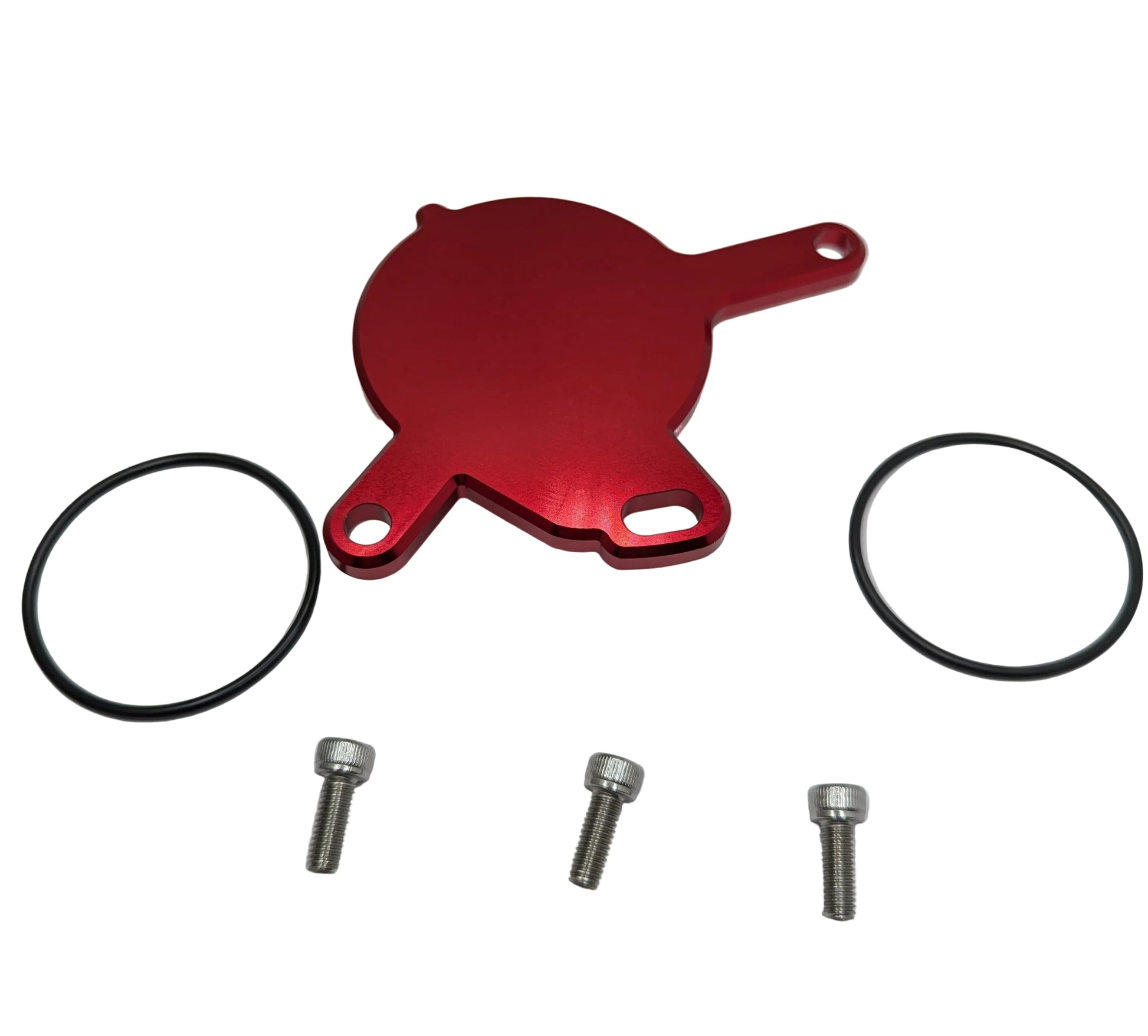

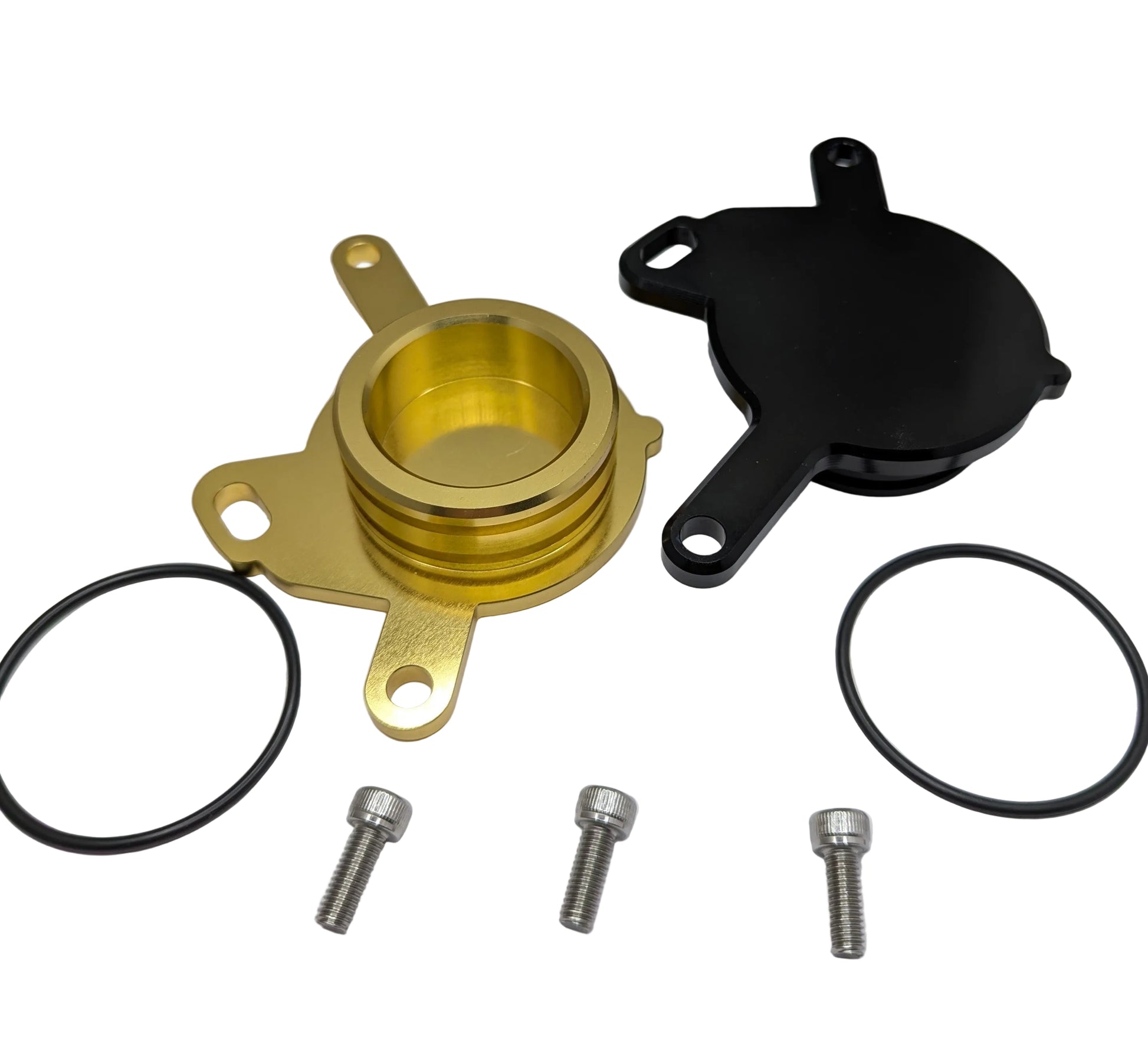

Includes:

1x Billet Vacuum Delete

3x 6mm Stainless socket head cap screws

2x Oil resistant O-rings

Suggested intallation:
Run a vacuum line to the intake manifold after the TB to get manifold vaccum so the power brakes still work
There is a line off the manifold on the front of it that you can splice into above the throttle body - Its the line that goes to the evap purge valve
Run a upr check valve in the line back to the brake booster so boost cant get back to it - MAKE SURE IT IS FACING THE CORRECT DIRECTION

Re-use the stock vacuum pump gasket w/ optional RTV to seal.

WARNING: Failure to properly plumb vacuum to brake booster will result in no power brakes. Please proceed with caution!

INSTALL INSTRUCTIONS

VACUUM HARNESS ROUTING
